How HVAC Zoning Systems Work
Want better control over your home’s comfort? HVAC zoning systems might be the solution. These systems divide your home into zones, each with its own thermostat, allowing customized temperature settings for different areas. Here’s what you need to know:
- Core Components: Thermostats, motorized dampers in ductwork, and a central control panel work together to regulate airflow and temperature.
- Energy Savings: Zoning can reduce energy bills by up to 30%, focusing heating and cooling only where needed.
- Charleston Climate: Ideal for multi-story homes in Charleston, where hot, humid summers often cause uneven temperatures between floors.
- Costs: Installation ranges from $2,000 to $5,000 for new systems or up to $12,500 for retrofits.
- Maintenance: Regular inspections, filter changes, and thermostat calibrations keep the system running efficiently.
If you’re tired of uneven temperatures or high energy bills, HVAC zoning systems offer a way to improve comfort and efficiency in your home.
Key Components of HVAC Zoning Systems
HVAC zoning systems are made up of several key components that work together to control airflow and temperature, ensuring a tailored climate experience for different areas of your home.
Zone Dampers
Zone dampers are motorized valves installed within your ductwork. Their job? To control airflow based on each zone’s specific temperature requirements. When a particular area needs heating or cooling, the damper opens to allow conditioned air to flow. Once the desired temperature is reached, it either closes or partially closes, redirecting airflow to other zones.
These dampers, typically constructed from galvanized steel or aluminum, are powered by electric or pneumatic motors. The motors respond to signals from the zone control panel, which directs how much the dampers should open or close. They don’t just operate in an "all or nothing" manner – dampers can adjust incrementally, allowing for precise control over airflow.
In Charleston’s multi-story homes, where temperature differences between floors are common, dampers are especially helpful. For instance, during the summer, they can reduce airflow to cooler downstairs areas while ensuring warmer upper floors receive adequate cooling, keeping the entire home comfortable.
Thermostats for Each Zone
Each zone in an HVAC zoning system has its own thermostat, giving you individual control over the temperature in specific areas of your home. These thermostats monitor local conditions and communicate directly with the system’s control panel.
Many zone thermostats come with programmable scheduling features, enabling you to set different temperatures for different times of the day. For example, you might prefer cooler bedrooms at night while keeping the living room comfortable during the day. Modern thermostats often include Wi-Fi connectivity, letting you make adjustments on the go through smartphone apps.
These devices constantly monitor temperature and humidity levels in their designated zones. If the conditions stray from your preferred settings, the thermostat sends a signal to the control panel, requesting heating or cooling. This real-time communication ensures each zone maintains the desired climate without disrupting other areas.
Zone Control Panel
The zone control panel acts as the brain of the entire system, managing communication between the thermostats, dampers, and the main HVAC unit. It processes temperature requests from each zone and determines the most efficient way to meet those demands.
When multiple zones require heating or cooling simultaneously, the control panel takes charge, prioritizing and balancing the system’s workload. It decides which dampers to open or close, when to activate the HVAC unit, and how to distribute airflow efficiently. Some advanced control panels can even operate the HVAC system at partial capacity if only a few zones need conditioning, saving energy.
Safety is another critical role of the control panel. It monitors the system for issues like blocked airflow or equipment malfunctions and can shut down operations to prevent damage. Additionally, many panels store performance data, making it easier for technicians to diagnose problems and fine-tune the system during maintenance.
In Charleston’s humid coastal climate, where moisture control is essential, control panels can work in tandem with dehumidification equipment. This ensures each zone maintains not only the right temperature but also comfortable humidity levels, creating a balanced and pleasant indoor environment. Together, these components illustrate how HVAC zoning systems deliver efficient and customized comfort throughout your home.
How HVAC Zoning Systems Work
HVAC zoning systems rely on the coordination between thermostats, control panels, and dampers to create a comfortable and efficient indoor environment. By dividing a home into zones, these systems allow for tailored temperature adjustments in different areas, ensuring personalized comfort and energy efficiency.
Thermostat Signals and Zone Adjustments
The process starts when a thermostat in a specific zone detects a temperature that doesn’t match its set point. For example, if a bedroom is too warm, the thermostat sends a signal to the zone control panel, requesting cooling.
This communication happens via low-voltage wiring or wireless signals. Modern thermostats often provide detailed temperature data, enabling precise control. When multiple zones request heating or cooling at the same time, the control panel processes these inputs and prioritizes them to maintain a balanced indoor climate. On particularly hot days, the system may adjust its operations to handle the increased demand for cooling. Once the control panel processes the signals, it adjusts airflow by managing the dampers.
Damper and Airflow Management
After receiving instructions from the control panel, motorized dampers within the ductwork adjust the airflow to deliver conditioned air to the requested zones. The system also monitors airflow pressure to avoid issues like static pressure buildup. If too many dampers close at once, bypass dampers kick in to maintain balanced airflow and protect the system from damage.
Some advanced zoning systems go a step further by adjusting the HVAC unit’s capacity based on overall demand. This not only ensures efficient operation but also helps reduce energy consumption compared to traditional single-zone systems. The entire process integrates smoothly with most existing HVAC setups.
Compatibility with Existing HVAC Systems
Zoning can often be added to existing HVAC systems, particularly forced-air systems commonly found in homes. This typically involves installing motorized dampers in the ductwork and connecting them to a zone control panel, without needing to replace the entire system.
Most modern gas furnaces, electric heat pumps, and central air conditioning units are capable of supporting zoning, provided they have the right electrical capacity and airflow capabilities. However, compatibility depends on factors like system size and design. If the equipment is oversized for a zoning setup, it might short-cycle, reducing both efficiency and lifespan. A professional evaluation can determine whether modifications or upgrades are necessary for your system to perform optimally.
For older homes with steam radiators or baseboard heating, zoning requires a different approach. These systems often rely on individual controls, such as separate pumps or valves, to manage temperatures in various areas effectively.
Installing a zoning system usually takes a few days, depending on the complexity of your home’s layout and the accessibility of the ductwork. In many cases, homeowners can continue using their existing thermostats during the installation, minimizing disruptions while the new system is put in place.
Benefits of HVAC Zoning Systems
HVAC zoning systems offer precise temperature control, reducing energy waste while addressing the unique challenges of Charleston’s coastal climate.
Energy Efficiency and Cost Savings
Zoning systems help lower energy bills by focusing heating and cooling on areas that are actively used. For instance, instead of conditioning an entire 2,500-square-foot home, the system can target specific spaces like the living room and kitchen when those areas are occupied. This approach is especially useful during Charleston’s hot summers, as it minimizes energy use in unoccupied areas like upstairs bedrooms or less-used zones while keeping the main living spaces comfortable.
In milder seasons like spring and fall, zoning systems maintain comfort without overburdening your HVAC setup. For example, they might lightly heat a chilly kitchen in the morning while leaving sunlit living rooms untouched. This level of precision eliminates the inefficiencies typical of single-thermostat systems.
By cycling more efficiently, zoning systems reduce wear and tear on equipment, which can extend the system’s lifespan and decrease the need for repairs. Beyond saving energy, zoning ensures consistent comfort throughout multi-story homes, where temperature imbalances are common.
Comfort Improvements for Multi-Story Homes
Multi-story homes often face temperature inconsistencies – upper floors tend to be warmer due to rising heat, while basements remain cooler. A single thermostat struggles to address these variations effectively.
Zoning systems solve this problem by giving each floor – or even individual rooms – its own thermostat and temperature control. This setup allows homeowners to create a balanced and comfortable environment throughout the house. For example, sleeping areas can be kept cooler while living spaces stay warm, catering to different preferences and needs.
Zoning also adapts to how spaces are used at different times of the day. In the morning, the system can warm up kitchens and bathrooms while leaving bedrooms cooler. In the evening, living areas and bedrooms can be adjusted for comfort, avoiding energy waste in areas that aren’t in use.
Custom Solutions for Coastal Properties
Homes in Charleston’s Lowcountry face unique challenges like high humidity, salt air, and intense sun exposure, which can create varying indoor climates even within the same property.
For rooms with large windows overlooking the river, solar heat gain can lead to uncomfortable temperatures during certain times of the day. Zoning systems can direct extra cooling to these areas without overcooling the rest of the home.
Humidity control is another area where zoning shines. Spaces like bathrooms, laundry rooms, or areas near water features may require enhanced dehumidification, while other zones maintain balanced humidity levels without drying out the air.
Zoning also makes transitional spaces like screened porches, sunrooms, or enclosed patios more comfortable. By dedicating specific zones to these areas, homeowners can enjoy them year-round, effectively increasing the usable space of their home.
Historic Lowcountry homes, with their high ceilings, large windows, and irregular layouts, also benefit from zoning systems. These systems adapt to various floor plans and ceiling heights, ensuring every part of the home receives the right level of conditioning.
The energy savings and increased comfort provided by HVAC zoning systems highlight the importance of professional installation and regular maintenance to keep them running smoothly.
sbb-itb-8415e22
Professional Installation and Maintenance
HVAC zoning systems are intricate setups that demand expert attention for both installation and upkeep. Their complexity means that professional installation isn’t just advisable – it’s absolutely necessary to ensure safe and efficient operation.
Why Professional Installation Is Required
Installing an HVAC zoning system is no simple task. It involves detailed duct modifications and electrical work that only certified technicians are qualified to handle. The process includes cutting into existing ductwork to install motorized dampers, running new thermostat wiring for each zone, and integrating a zone control panel with your current HVAC system.
Proper duct sizing and airflow calculations are crucial steps that require professional expertise. Misplaced dampers or incorrectly sized ducts can lead to pressure imbalances, which can harm your HVAC system or make it less efficient. Additionally, precise wiring and compliance with local codes are critical for the system to operate safely and reliably.
Certified technicians also conduct compatibility checks to ensure your current system can handle the demands of zoning. Some setups may require upgrades or adjustments to manage variable airflow, and these assessments are key to avoiding future issues. A meticulous installation process lays the groundwork for effective maintenance and long-term performance.
Maintenance Tips for Long-Term Performance
Once your system is professionally installed, regular maintenance is essential to keep it running smoothly. Biannual inspections, thermostat calibrations, and filter replacements are fundamental to maintaining efficiency and comfort. During these visits, technicians ensure dampers are functioning properly, verify sensor accuracy, and replace filters that could block airflow.
The zone control panel also requires periodic attention. Technicians inspect wiring connections and update system programming as needed. Loose wires can cause intermittent issues, while outdated programming may not align with how you currently use your home’s spaces.
Seasonal adjustments are another important aspect of maintenance. As weather conditions shift, technicians can fine-tune damper settings and thermostat schedules to account for changes in sunlight exposure, humidity levels, and how different areas of your home are used.

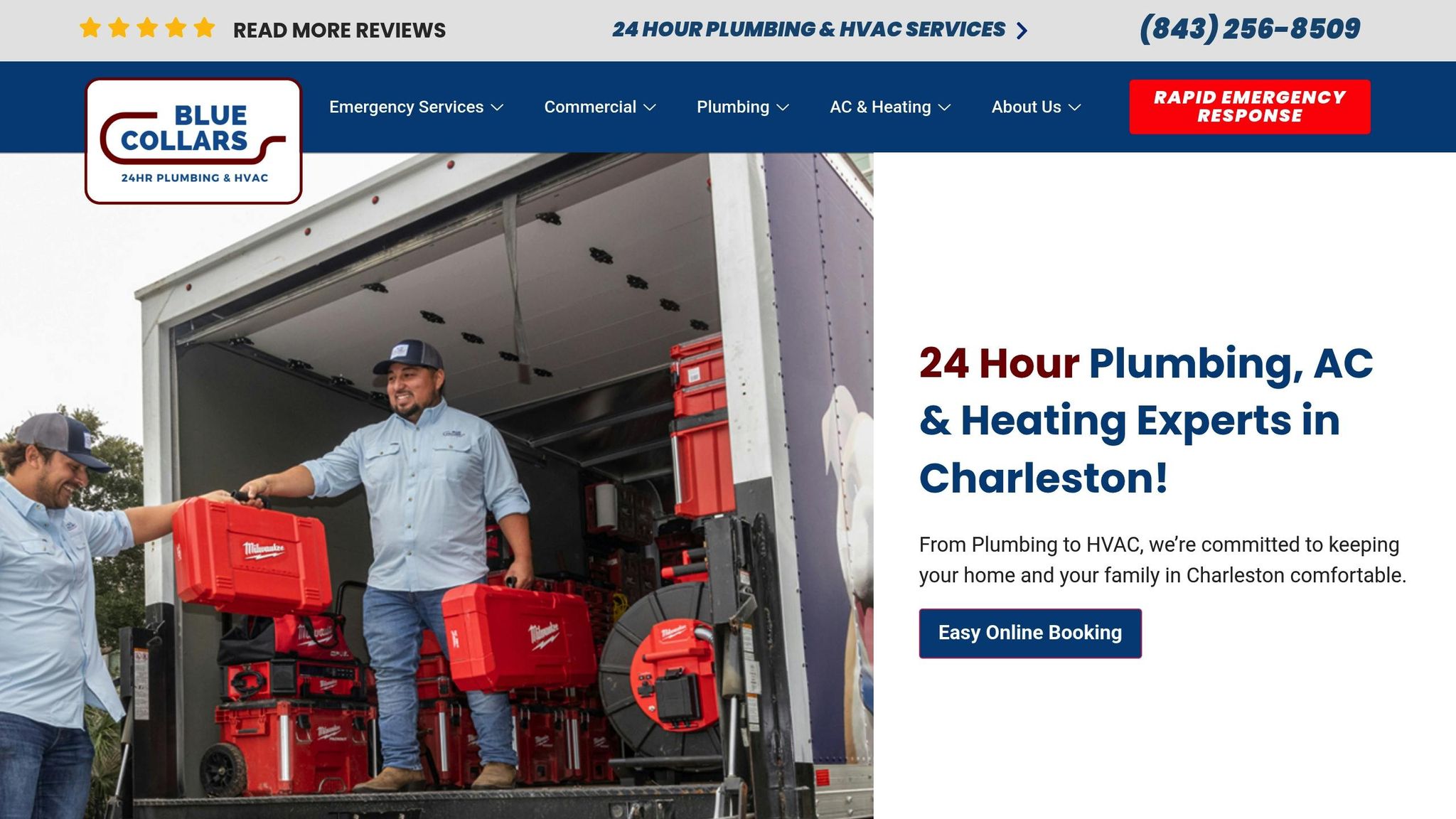

Blue Collars‘ HVAC Zoning Services
Blue Collars takes professional installation and maintenance to the next level, ensuring your zoning system operates at peak performance year-round. Their certified technicians offer transparent pricing and 24/7 emergency services throughout Charleston and the Lowcountry, addressing the specific challenges of the region’s coastal climate.
With their user-friendly online booking system, homeowners can easily schedule maintenance or service calls. This convenience makes it simple to stay on top of preventive care, which helps extend the life of your system and keeps it running efficiently.
Blue Collars understands that no two Charleston homes are alike. From historic downtown properties to sleek coastal developments, they create customized zoning solutions that reflect your home’s design, your family’s needs, and the unique demands of the Lowcountry’s humid, subtropical climate.
Getting the Most from HVAC Zoning Systems
Once you’ve got the basics of your HVAC zoning system down, there are a few key ways to fine-tune its performance and make sure you’re getting the most out of it. Start by understanding how the system works and keeping its components in top shape.
First, pay attention to where you place your thermostats. Keep them away from direct sunlight, heat sources, windows, doors, and vents. This helps ensure the readings are accurate and the system operates efficiently. Take advantage of programmable thermostat settings as well – lower the temperature during Charleston’s hottest days and adjust it during milder weather for better energy management.
Routine maintenance is another must. Change filters regularly and clean dampers and ductwork to avoid airflow restrictions. Blocked airflow forces your system to work harder than it should, which can lead to higher energy bills and unnecessary wear and tear.
To really make the most of your zoning system, keep an eye on its performance and adjust zone usage as needed. For example, focus on cooling upper floors during the hottest parts of the day while dialing back output in areas that aren’t frequently used.
If you’re looking for expert advice, Blue Collars offers personalized consultations to customize HVAC zoning for Charleston’s specific climate. They can help with smart thermostat installations and ductless mini-split systems, which are especially useful for multi-story homes. These systems allow for precise temperature control in specific rooms or additions, making them a great option when modifying traditional ductwork isn’t practical. With Charleston’s humid summers and cool winters, these tailored solutions can help your system handle local climate challenges effectively.
FAQs
How do HVAC zoning systems help save energy in multi-story homes?
HVAC zoning systems are a smart way to cut down on energy use in multi-story homes. They allow you to set specific temperature preferences for different areas or floors, so you’re not heating or cooling the whole house when only certain spaces are in use. This helps eliminate wasted energy.
These systems rely on components like dampers and zone control panels to let each zone function independently. The result? A more efficient setup that can trim up to 30% off your utility bills. Plus, they boost comfort by catering to the distinct heating and cooling needs of various parts of the home. They’re particularly useful in homes where temperatures vary noticeably between floors, such as multi-story or coastal properties.
How can I tell if my current HVAC system works with a zoning setup?
To figure out if your HVAC system can work with zoning, the first step is to check if it’s compatible with zone control panels and dampers. Many central HVAC systems, especially those using standard 24VAC, non-communicating thermostats, can be upgraded for zoning without needing a complete replacement.
It’s also important to confirm whether your system can manage the extra load and control demands that zoning introduces. Sometimes, minor tweaks or upgrades might be required to ensure everything runs smoothly. For the best advice, reach out to an HVAC professional who can assess your current system and suggest any necessary changes to make zoning work for you.
Why should HVAC zoning systems be installed by a professional, and what does the process include?
Proper installation of an HVAC zoning system is essential for it to function safely, efficiently, and as intended. A skilled technician will handle the setup with precision, ensuring components like dampers, thermostats, and the zone control panel are installed and calibrated correctly. They’ll also adjust the ductwork as needed to maintain balanced airflow throughout your home or building.
Getting the installation right can help avoid common problems like uneven temperatures, system breakdowns, and wasted energy. Trusting a professional means you’ll enjoy a more comfortable living space, improved energy savings, and the confidence that your system is optimized to perform at its peak.
